Camara portatil para termografias, Alta sensibilidad termica 65mK, Resolucion 160 x 120 pixels, Ulirvision. La merjor opcion Calidad/Precio, no pague mas servicios de termografia externos, hagalo usted mismo con una bajisima inversion.
SOLO DISPONIBLE PARA IMPORTACION, POR FAVOR CONTACTENOS PARA COTIZACIONES
| Fabricante Ulirvision | |
 |
CARACTERISTICAS PRINCIPALES:

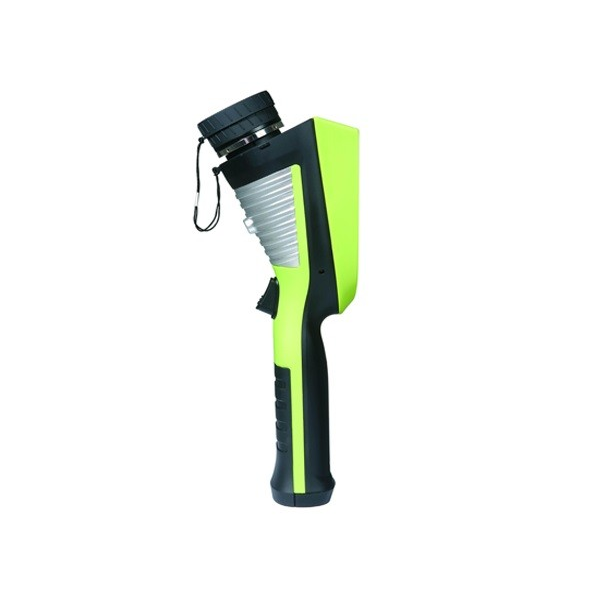

La camara termografica TI160 cuenta con una alta sensibilidad térmica de 65mk puede identificar la diferencia de temperatura más pequeña de un objeto y mostrarlo mediante excelentes imágenes térmicas. Puesto que un fallo de potencial siempre viene con el sobrecalentamiento/sobreenfriamiento parcial, el usuario puede localizar facilmente la parte recalentada/enfriada con una Cámara de Imagen Térmica ULIRvision de forma instantánea, y descubrir más detalles acerca de la falla con la asistencia de nuestro software profesional de analisis de imagenes termicas (Thermal Analysis Imaging Software).
Detector Data
| Detector type | Focal plane array(FPA),Uncooled Microbolometer |
| IR resolution | 160 x 120 pixels |
| Pixel pitch | 25μm |
IR Imaging and Optical Data
| Spectral range | 8-14μm |
| Field of view (FOV)/min focus distance | 21°x 16°/0.15m(standard lens) |
| 35°x 27°/0.05m (wide angle lens?optional) | |
| 4° x 3° /0.8m (telephoto lens,optional) |
Image Presentation
| Spatial resolution (IFOV) | 2.3mrad( standard lens) |
| Thermal sensitivity(NETD) | <65mk at 30℃ |
| Image frequency | 50/60Hz |
| Focus | Manual |
| Electronic zoom | 2x |
| Display | Built-in 3.5" color LCD |
Measurement
| Temperature range | -20℃to +120℃ / 0℃ to +350℃(switchable) |
| Up to 1200℃(optional) | |
| Accuracy | ±2℃ or ±2% of reading |
| Measurement spot | Up to 4 moveable spots |
| Measurement area | Up to 3 moveable boxes, automatically capture maximum minimum, average temperature |
| Line profile | Vertical, horizontal |
| Isotherms analysis | Detect high/low temperature/interval |
| High temperature alarm | Voice, color |
| Emissivity correction | Adjustable from 0.01 to 1.0 |
| Temperature correction | Auto |
| Multiple Language Menu | 10 Languages(English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese) |
Image Storage of Thermal Imaging Camera
| Storage type | Built-in flash card, up to 1500 images |
| Files format | Standard JPEG, 14-bit measurement data included |
| Voice comments | 40s voice record, stored with per image via built-in microphone. |
Laser Indication
| Classification type | Class 2, 1mW/635nm Red |
Power System
| Battery type | Rechargeable and replaceable Li-ion battery |
| Battery operating time | Approx 3 hours |
| Power saving | User defined |
| Power operation | 12V ±5% |
Environment Data
| Operating temperature range | -20℃ - +50℃ |
| Storage temperature range | -40℃ - +70℃ |
| Humidity(operating and storage) | ?90?non-condensing |
| Shock | 25G IEC68-2-29 |
| Vibration | 2G IEC68-2-26 |
Physical Data
| Size, L x W x H | 330mm × 95mm × 86mm |
| Weight | 650g |
| Tripod mounting | 1/4?-20 |
Interfaces
| External DC input | Yes |
| Audio output | Yes |
| Video output | PAL / NTSC |
| USB | Images transfer to PC |
Camera Includes
| Standard | Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, Video cable, USB cable, Software CD, instruction, warranty card, transport case |
| Optional accessories | Li-ion battery, IR lens |
